Single Tool Servo Cutting Machine

Experience Cutting Precision with Senmei's Servo Technology

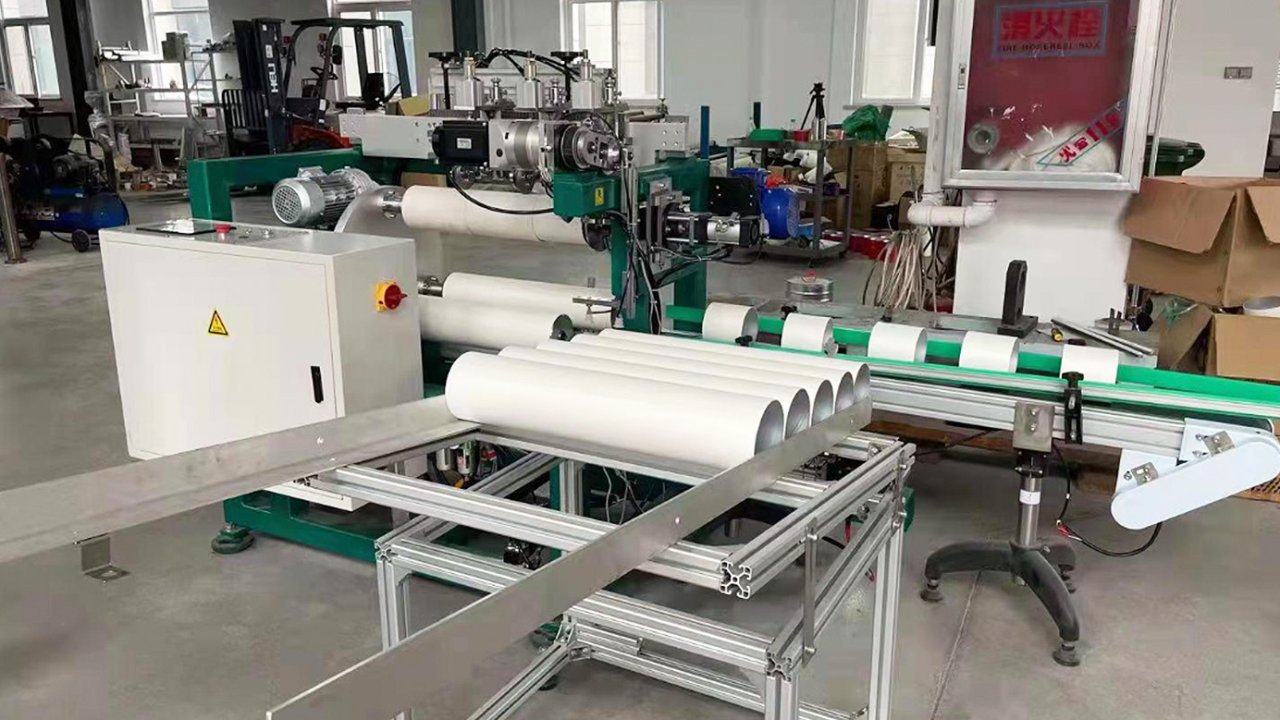

Single Tool Servo Cutting Machine | Senmei Packaging Machinery

Single Tool Servo Cutting Machine | Senmei Packaging Machinery

Description of the machine:

● The machine, which has three work stations, is suitable for cutting paper tube with one end curled continuously. Automatic detection of paper tube feeding, automatic tooling casing, automatic control of cutter movement , automatic paper tube discharging after recutting, all the procedures are controlled by PLC and servo system. Paper tube flow in through feed channel and the machine works continuously.

● Equipment operation is very simple, the touchscreen interface has "inching" function, it’s very easy to replace the tooling and do adjustment.

● The machine have alarm function, when there is abnormal during production, it will shut down automatically.

● The precise positioning of papr tube ensures a fine cut, making cut trimness and no burr.

● Floating knife. Super hard mold, never damaged, the cutter is guaranteed not to be replaced for one year.

Technical Parameters:

● Paper tube feeding: automatic

● Paper tube discharging: automatic

● Paper tube positioning way: CNC stepping system

Item

Data

ModelSMQ-III Automatic paper tube recutting machine

Applicable tank diameter

Φ50-Φ160MM

Paper tube length

600mm

Applicable label thickness

100-120gsm for ¢30-¢75 and 100-157gsm for ¢80-¢160

Cutting precision

<0.5mm

Minimum recutting length

20mm

Speed

20-25 pcs/min.

Voltage

Can be Selected

Working Air Pressure

0.5Mpa

Rated power

2.2KW

Operator

1 Person

Dimenson

L2680* W1530 * H1500mm

Weight

780kgs
