Professional paper tube packaging equipment manufacturer since 2005
This versatile paper tube sealing, capping, flanging, and edge banding machine finds wide applications, sealing paper cans for various foods like coffee, tea, and snacks. It is also suitable for small toys such as miniature puzzles and jewelry, delivering excellent results with stable performance.
Auto paper tube sealing machine Specifications
| Attribute | Value |
|---|---|
| Model | SM600-F Paper Tube packaging, machinery,horizontal type automatie paper tube seaming machine |
| Paper Tube Feeding | Automatic |
| Paper Tube Discharging | Automatic |
| Paper Tube Diameter | Φ40mm - Φ160mm |
| Paper Tube Length | 70-500mm |
| Paper Tube Thickness | 0.8-1.5mm |
| Air Pressure | 0.5Mpa |
| Production Efficiency | 23-27 pieces/min |
| Rated Power | 2.0KW |
| Voltage | Three phases 380V, 50Hz |
| Machine Dimensions | 1780x1900x1750mm |
| Machine Weight | 1380KGS |
Machine Features:
When operating this paper tube sealing and capping machine, the paper tube automatically rolls in horizontally, gripped by a mechanical arm. Compared to vertical models, this machine operates more smoothly, avoiding instability when dealing with longer tubes.
The machine employs mechanical-driven stepwise feeding with multi-position synchronous operation, achieving flanging and edge banding.
Compared to vertical models, this paper tube sealing machine offers quick and convenient replacement of flanging molds and sealing heads. The metal cap distributor is suitable for diameters ranging from 40 to 160mm.
The machine accommodates a wide product range with diameters from 40-160mm and heights up to 500mm.

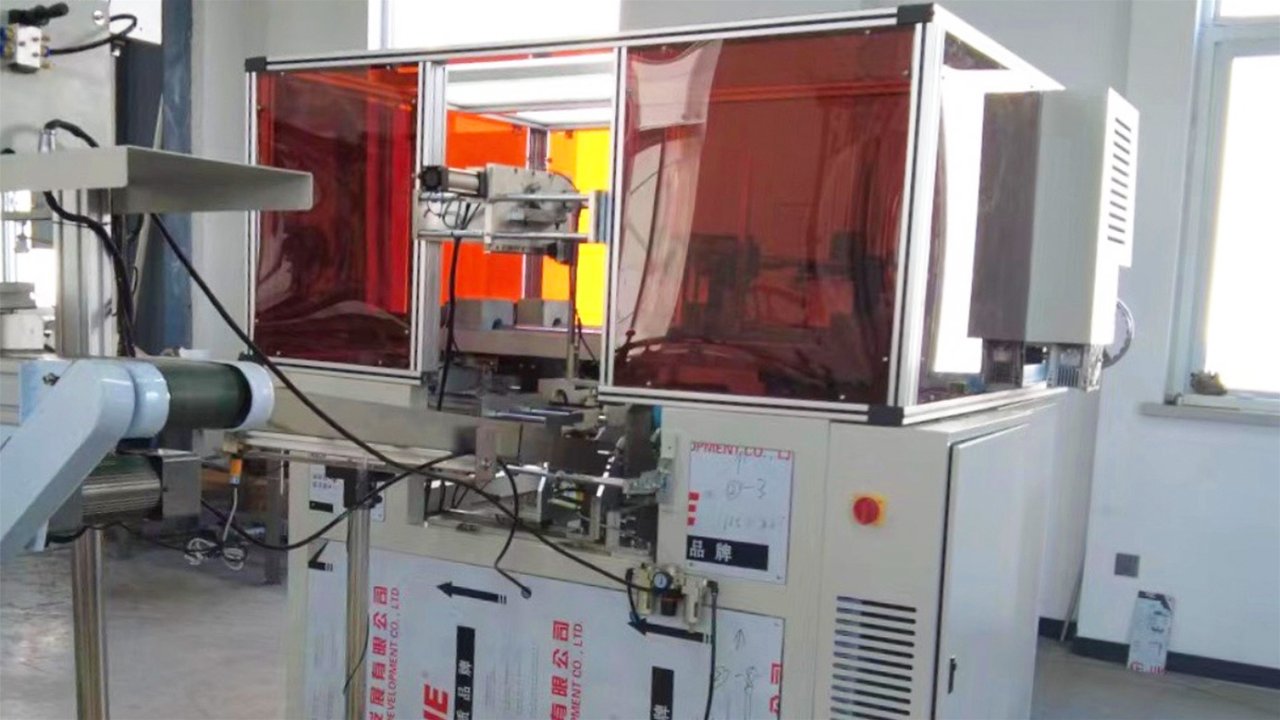

Product Name: Auto Paper Tube Sealing Machine
